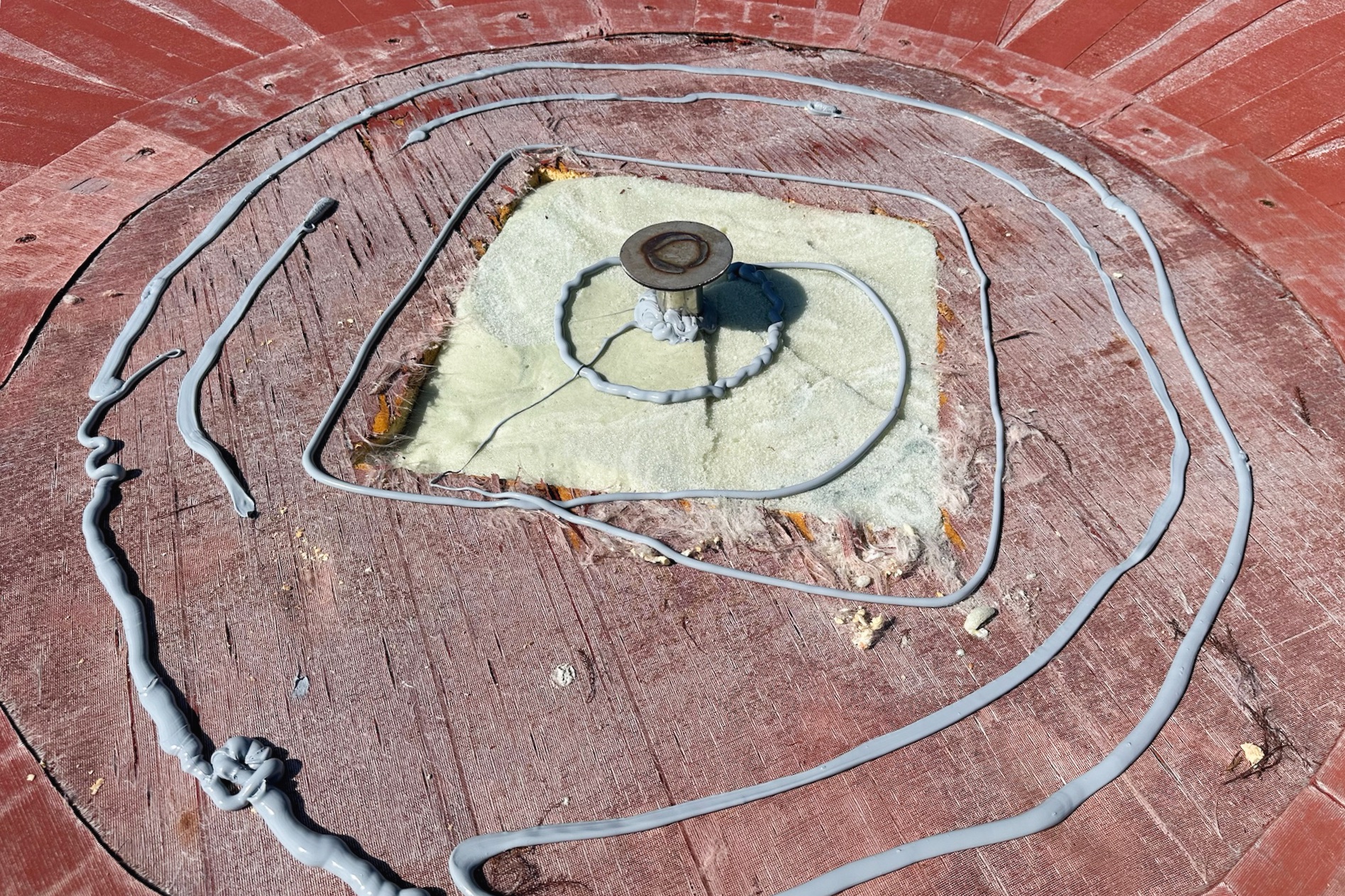

Gluing Patch over Anchor Base
Step 8: Use a heat welder to attach a round patch of Airform membrane over the repaired area. Make sure the patch fully covers the square cutout and overlaps the existing membrane for a strong, watertight seal. Press firmly as you weld to ensure good adhesion all the way around. NOTE: This Airform was badly worn, so welding would not have worked well. We decided to glue down the center portion of the patch with NP1 urethane adhesive.
Image by Mike South
