Monolithic Dome Thermograph.

Monolithic Dome Thermograph

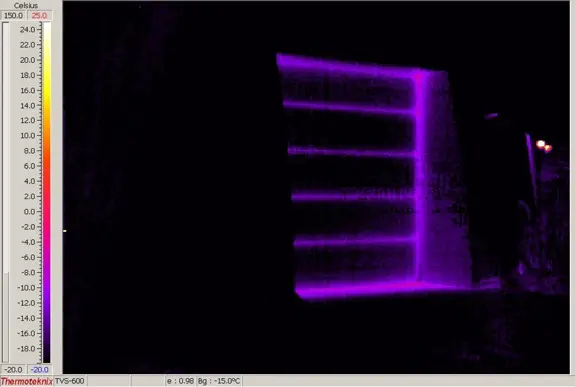

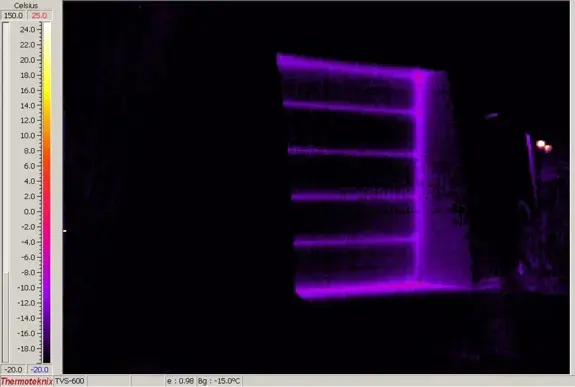

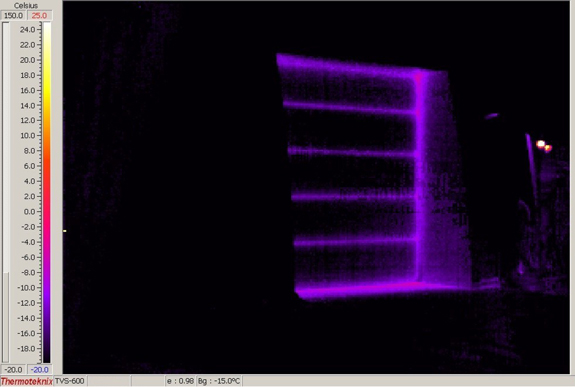

Figure 2.10: This picture shows the same Monolithic Dome through the thermographic camera at the same –13°F (–25°C). Note the Monolithic Dome is black. This is a heated shop. There is no heat loss through the dome shell. The door (insulated) is leaking heat, especially at the cracks between the sections and along the edges.

Image by Robert Phillips via Monolithic Commons

CC BY 4.0
