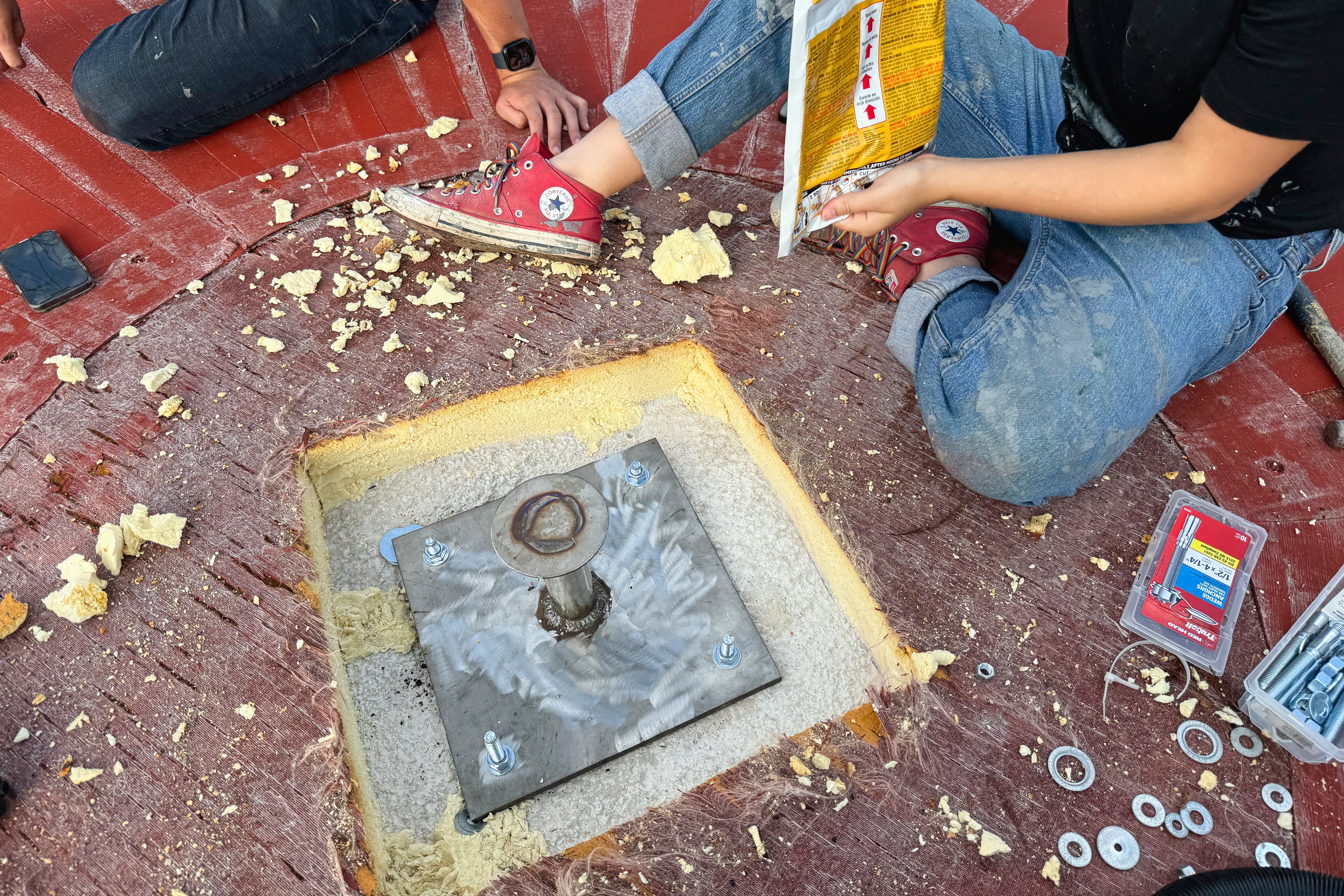

The Wedge Anchors are Placed
Step 5: Install the ½″ wedge anchors into the drilled holes. Tap them in with a hammer until fully seated, then tighten the nuts to secure the base plate firmly to the concrete. There may be times when using washers under the base plate to level the anchor point before tightening the nuts makes sense. Shotcrete isn’t always perfectly level.
