Closeup of Saddle Transition.

Closeup of Saddle Transition

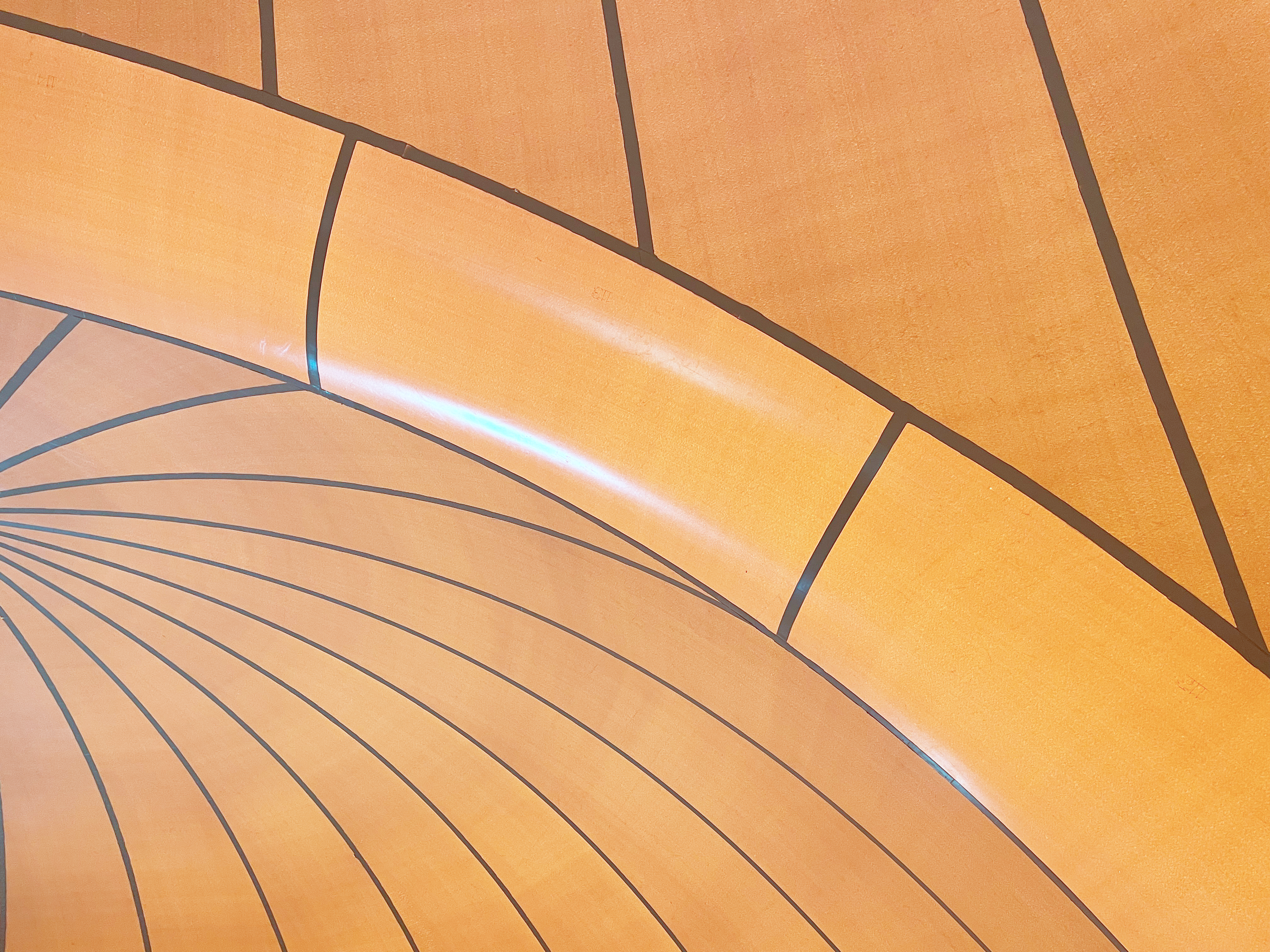

The saddle between the main dome (50′ × 25′) and the smaller, single-end dome (40′ × 16′ 8″). This saddle is interesting because it connects a spherical dome to an elliptical dome. Saddles like this are highly technical because of the varying radii of elliptical structures. We nailed it.
