West Side Thermograph

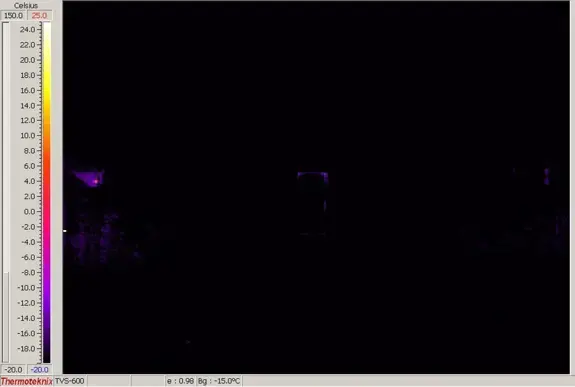

Figure 2.13: Another thermograph taken of the west face of the dome. Note the small amount of heat loss around the personnel door.

Image by Robert Phillips via Monolithic Commons
