Framing Board with a Concrete Anchor.

Framing Board with a Concrete Anchor

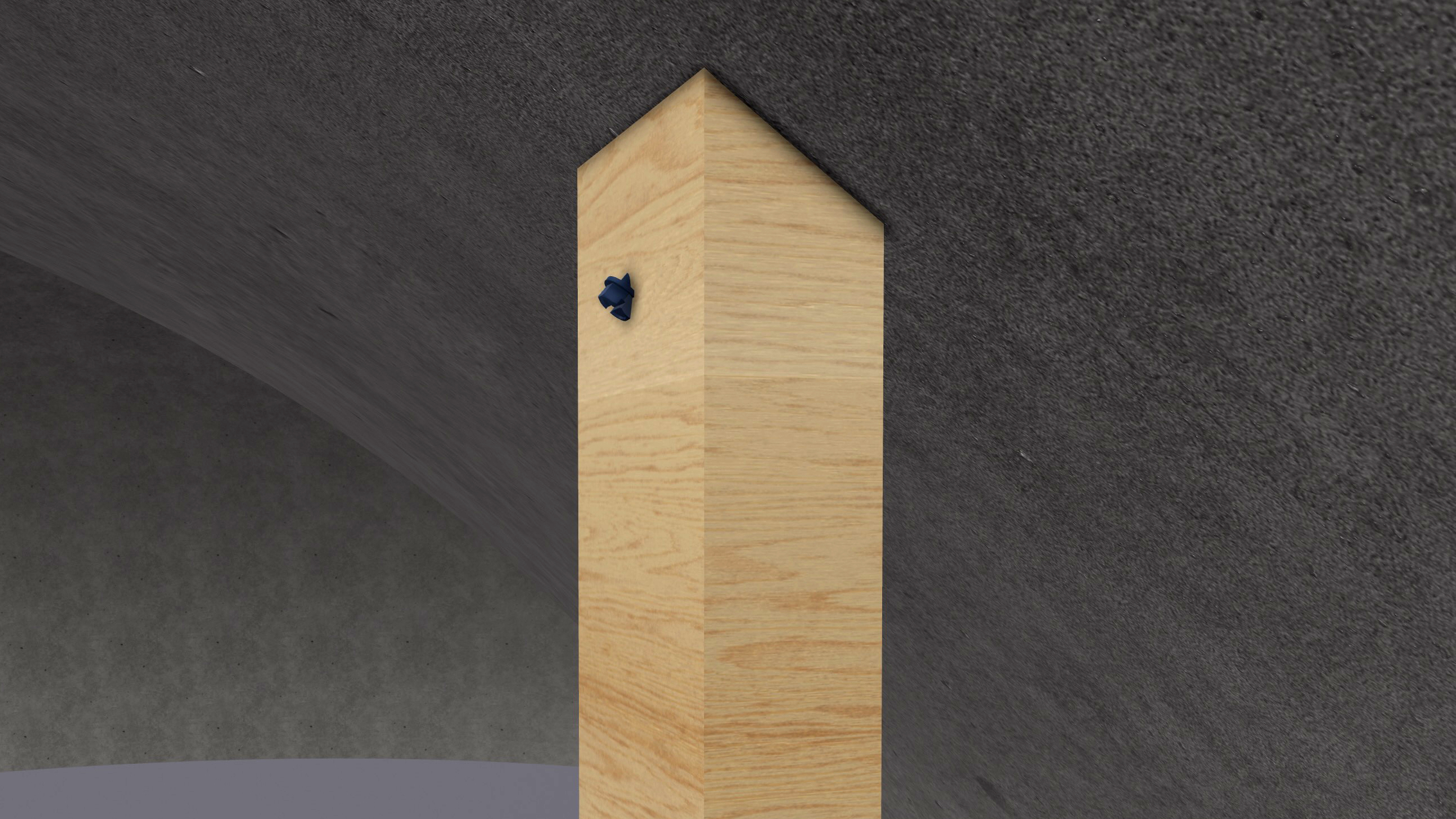

A framing board is attached with a concrete anchor directly to the Monolithic Dome shell. Maybe the main difference between building this exterior wall in a Monolithic Dome vs. a conventional structure is that it is attached to curved concrete instead of a square wood frame. It’s a pretty simply thing to adjust to.

Image by Mike South via Monolithic Commons

CC BY 4.0
