Installing Steel Transition Hoop.

Installing Steel Transition Hoop

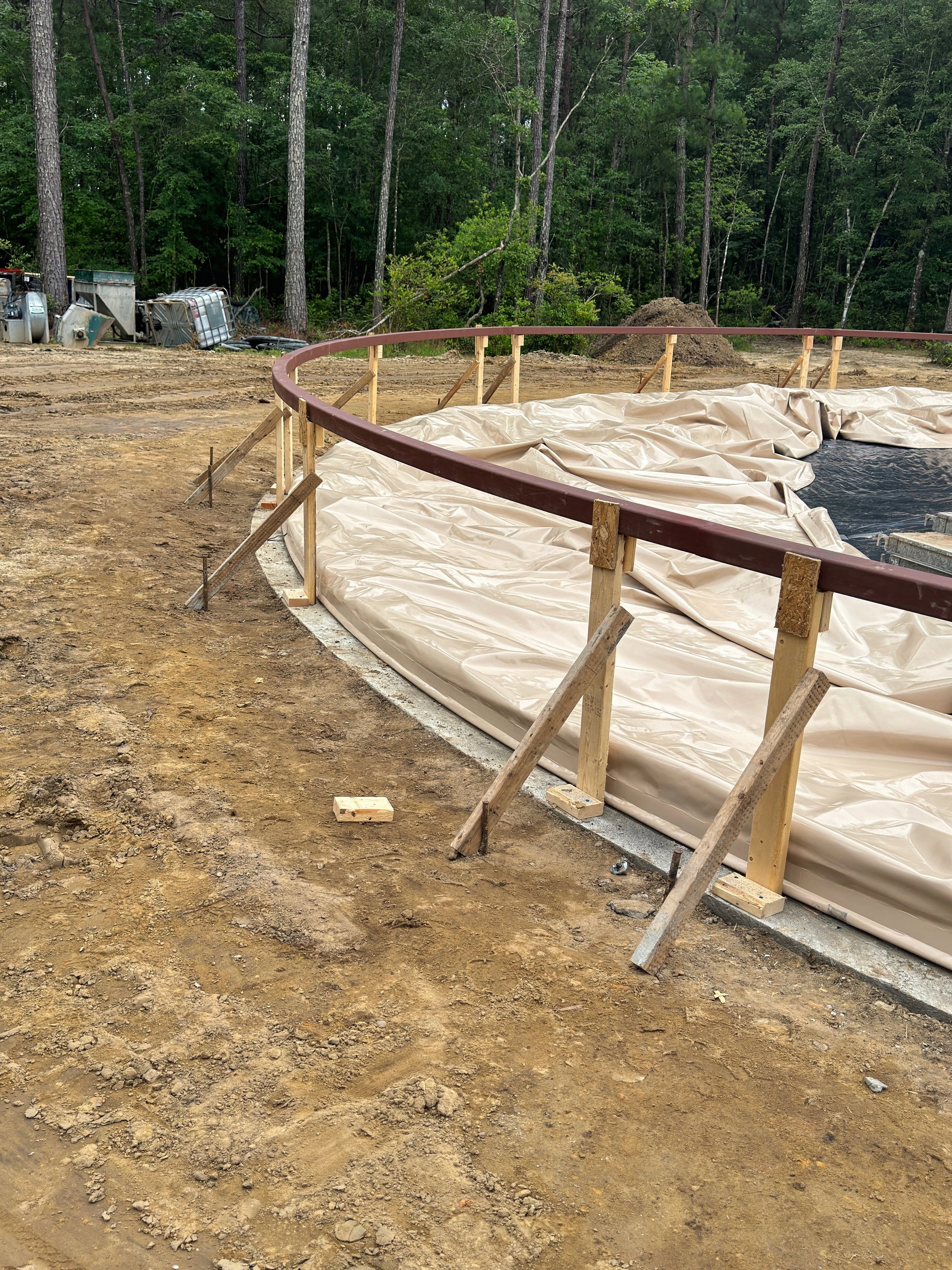

The stemwall membrane (the stemwall portion of the Airform) has been attached to the curb of the ring beam footing. Temporary wooden stanchions hold up a steel hoop used to join the top of the stemwall membrane to the bottom of the dome membrane (the arched upper portion of the Airform).
